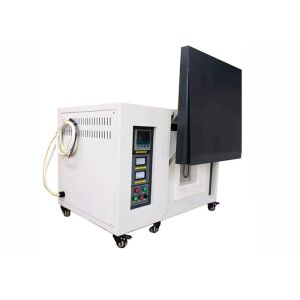

Industrial Muffle Furnace Ceramic Kiln Over Temperature Alarm
1700.C High Temperature Small Chamber industrial Muffle Furnace is an effective high temperature lab testing furnace. The furnace consists of high quality alumina fiber board and Superior MoSi2 heating elements with special design, and can be used up to 1700°C. It is an ideal tool for materials annealing and sintering in your research laboratory.
Technical data of industrial muffle furnace :
| Style: | SP-1800B-12L |
| Standard Working Temperature | 1700℃ ( continuous ) |
| Maximum Working Temperature | 1800℃ ( < 3 hrs) |
| Inside Chamber Size | 200x200x300mm (Customizable) |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~20℃/ min (suggestion:<10℃) |
| Temperature Accuracy | +/- 1℃ |
| Working Voltage | AC 220V Single Phase 60/50 Hz (or according to your requirement) |
| Furnace structure | Double shell with fan cooling |
| Heating Element | MoSi2 heating elements |
| Thermocouple | B type |
| Max. Power | 8KW |
| Standard package included with the furnace: |
| Part description | Quantity |
| Thermal couple | 1 pc |
| Door block | 1pc |
| Stainless steel hook | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
Introduction of industrial muffle furnace:
1. chamber size :from 100*100*100mm to 600*600*600mm (1L- 216L)
2.operation temperature:100C to 1700.C .Max temperature : 1700.C
3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.
4.heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .
5. Temperature measuring instrument :K type thermocouple for 1200.C furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .
Warranty:
Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
Standard Spares for industrial muffle furnace:
- Fire brick
- High temperature gloves
- Crucible clip
- Operation Manual
- MoSi2 heating element 2pcs
Optional Spares for industrial muffle furnace
- 7-inch touch screen
- Gas vent
- Observation hole
- Software
- Furnace furniture as per your requirement.
- Alumina crucible as per your requirement
- Special design as per your requirement
